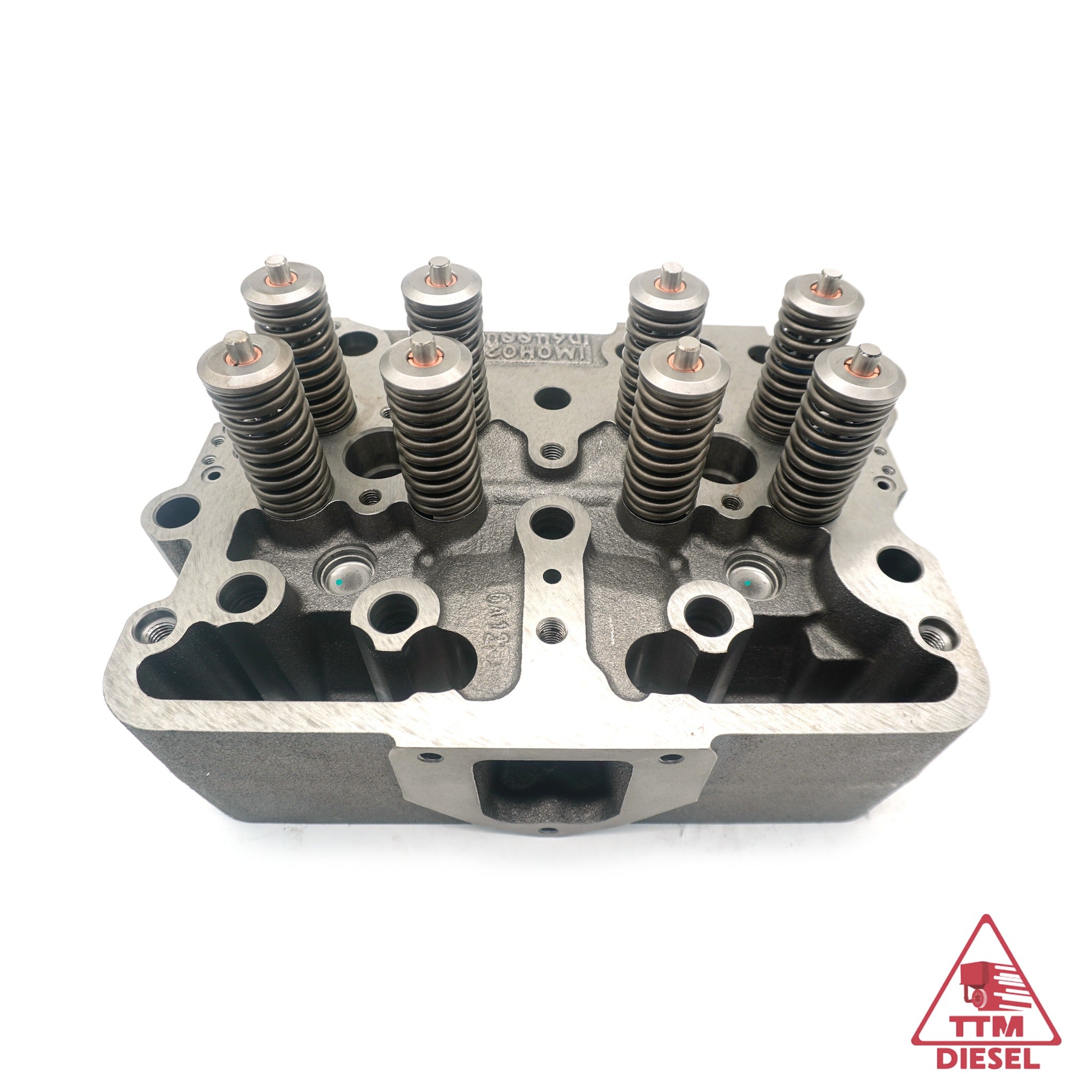

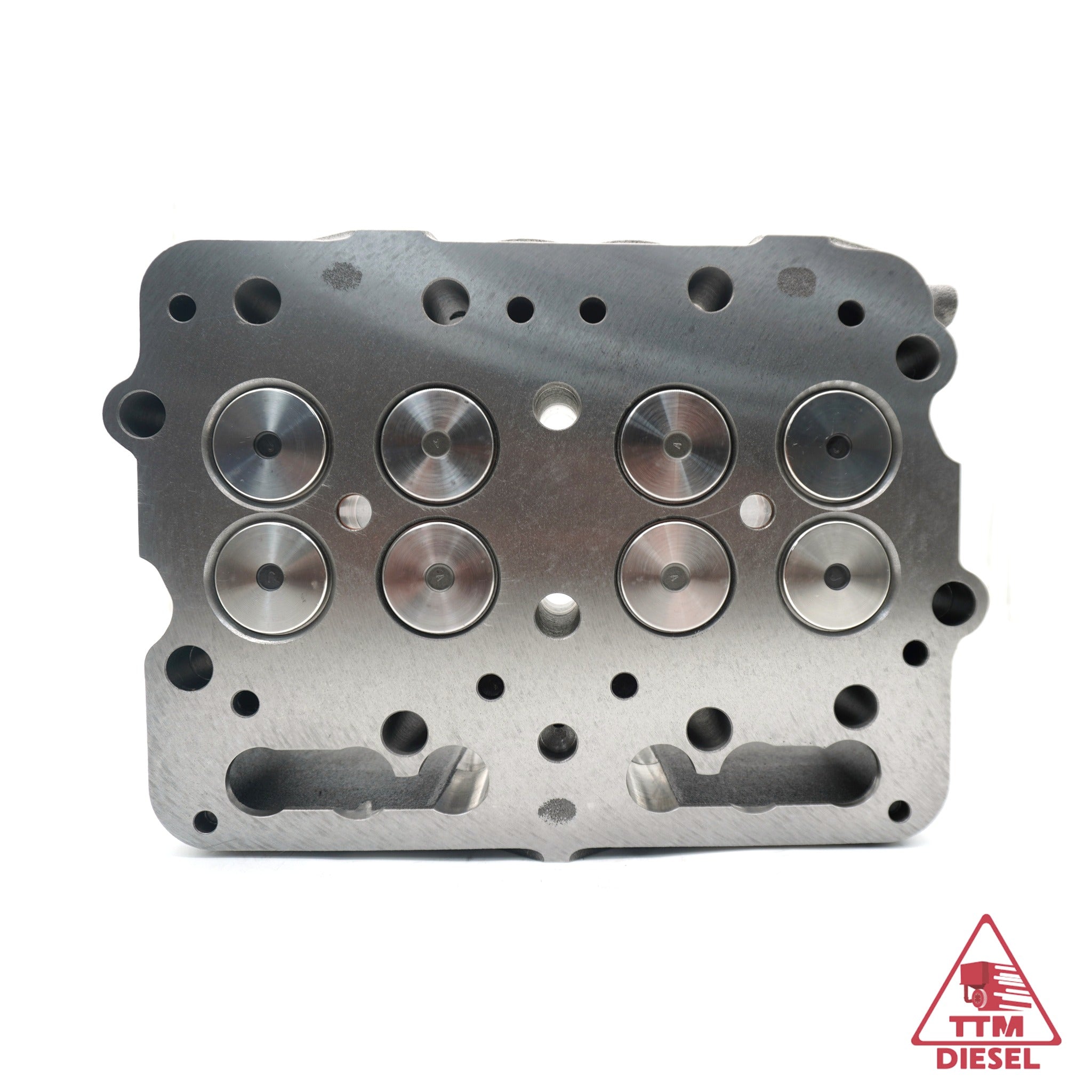

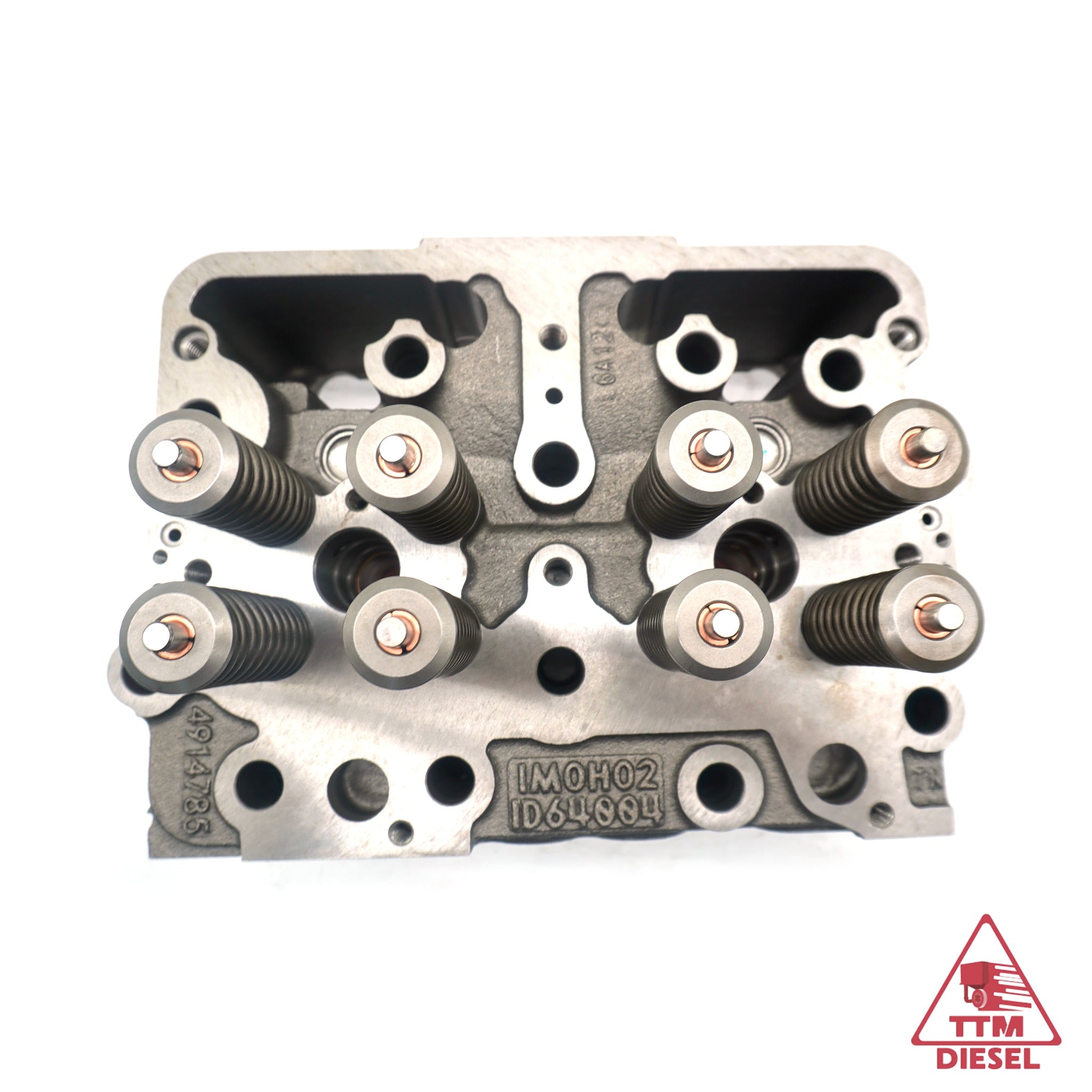

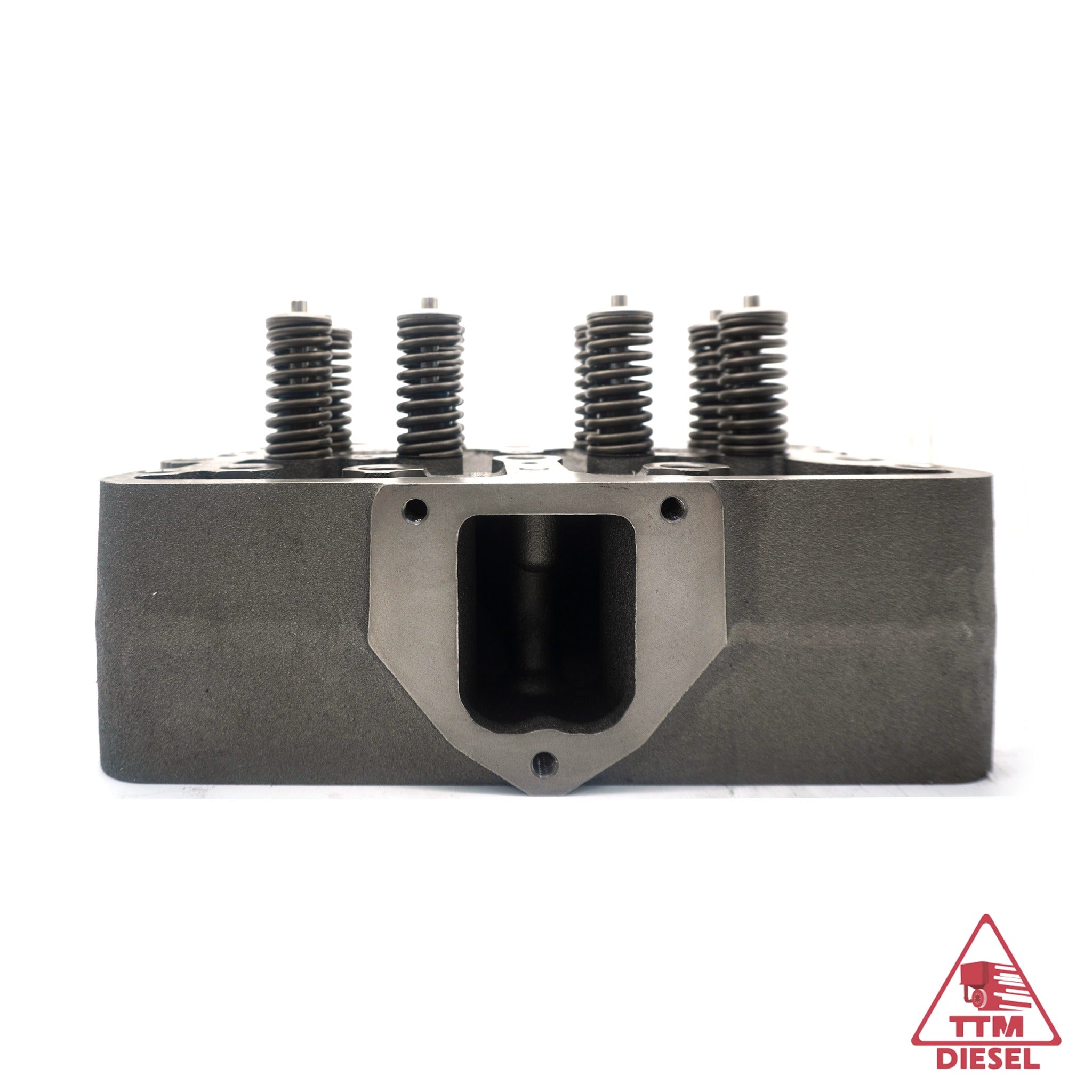

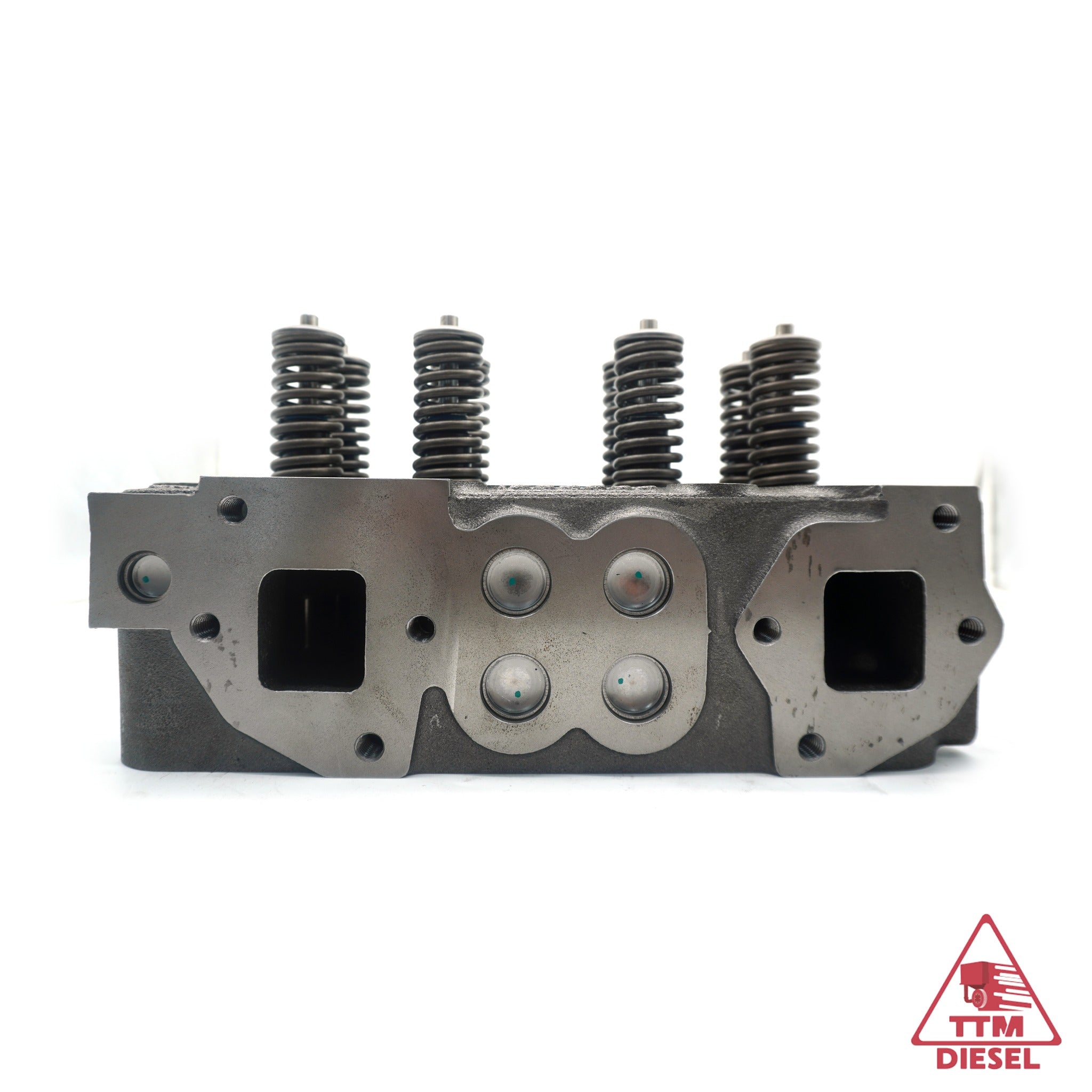

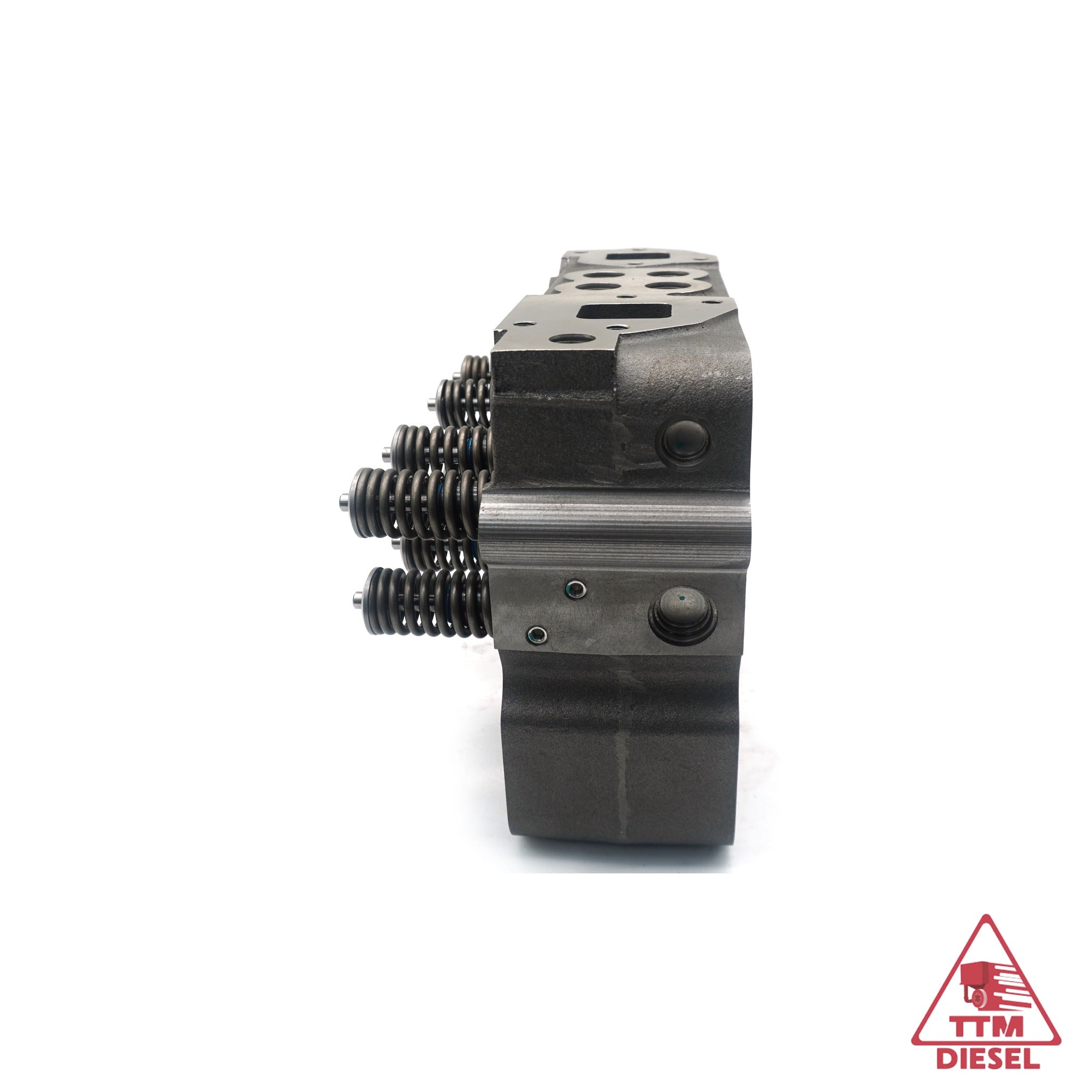

New Cummins N14 Fully Loaded Cylinder Head — 3078360

This is a brand new casting — not a dealer reman built on a fatigued core. Fully loaded, pressure-ready, and a direct bolt-on replacement for every OEM part number listed below.

Engineered for Enhanced Performance

• 250–300 MPa tensile-strength casting — typical OEM head castings run 175–200 MPa. More strength, more resistance to cracking.

• Premium cast alloy — 5% higher nickel content than OE castings to eliminate valve-seat cracking.

• 15% larger cooling ports — improved heat flow keeps head temperatures stable under heavy load.

• Reinforced internal ribs — added structural support reduces thermal stress and warping.

• Inconel exhaust valves — withstand higher combustion temps and pressure for long service life.

• Fully loaded & ready to install — assembled with valves, springs, keepers, rotators, seals and guides. No core return required.

Why Upgrade to TTM's Cylinder Head?

Fitment

Fits Cummins N14 (855 cu in) applications — N14 Celect and N14 Celect Plus. Not sure this is your head? Send us your engine serial number before you order and we will confirm fitment.

Complete the Job

Head bolts on an N14 are single-use and a head swap needs a full upper gasket set. We stock both: N14 Celect Head Gasket Kit (3804286) and N14 Head Gasket Set (4089371).

While You're In There

The exhaust manifold comes off with the head — and manifold hardware heat-cycles until it seizes, stretches, or snaps. Reusing it is how a fresh head ends up with an exhaust leak. We stock the complete N14/855 Exhaust Manifold Install Kit (181010) and the N14 Celect Plus Manifold Install Kit (181011).

OEM Cross Reference Numbers

Cummins: 3078360 | 3078380 | 3083981 | 3084058 | 3084981 | 3406738 | 3406742 (current Cummins number) | 3406742X | 3406742RX | 3406742PX | 3411813 | 3411817

Reading Cummins suffixes: no suffix or PX = new; RX = Cummins remanufactured exchange. Same head, different program — ours replaces any of them, and ours is brand new.

Frequently Asked Questions

Is this head new or remanufactured?
New. A reman head starts as a used core that has already been through hundreds of thousands of heat cycles. This casting has zero hours on it.

Do I have to return my old head?
No. There is no core charge and no core return required.

My Cummins quote says 3406742RX — is this the same head?
Yes. 3406742 is the current Cummins number for this head; RX on the end means their remanufactured-exchange program and PX means new. This head replaces all of them — brand new, with no core charge.

Why do N14 heads crack?
Valve-seat cracking from thermal fatigue is the classic N14 failure. That is exactly why this casting runs a 250–300 MPa tensile rating (typical OEM: 175–200 MPa), 5% more nickel and 15% larger cooling ports — more fatigue resistance, lower peak temperatures.

What else should I replace while I'm in there?
Upper gasket set and new head bolts at minimum, and new exhaust manifold mounting hardware — it wears out from heat cycling and the manifold is already off. If the engine overheated, have the deck checked before assembly.
