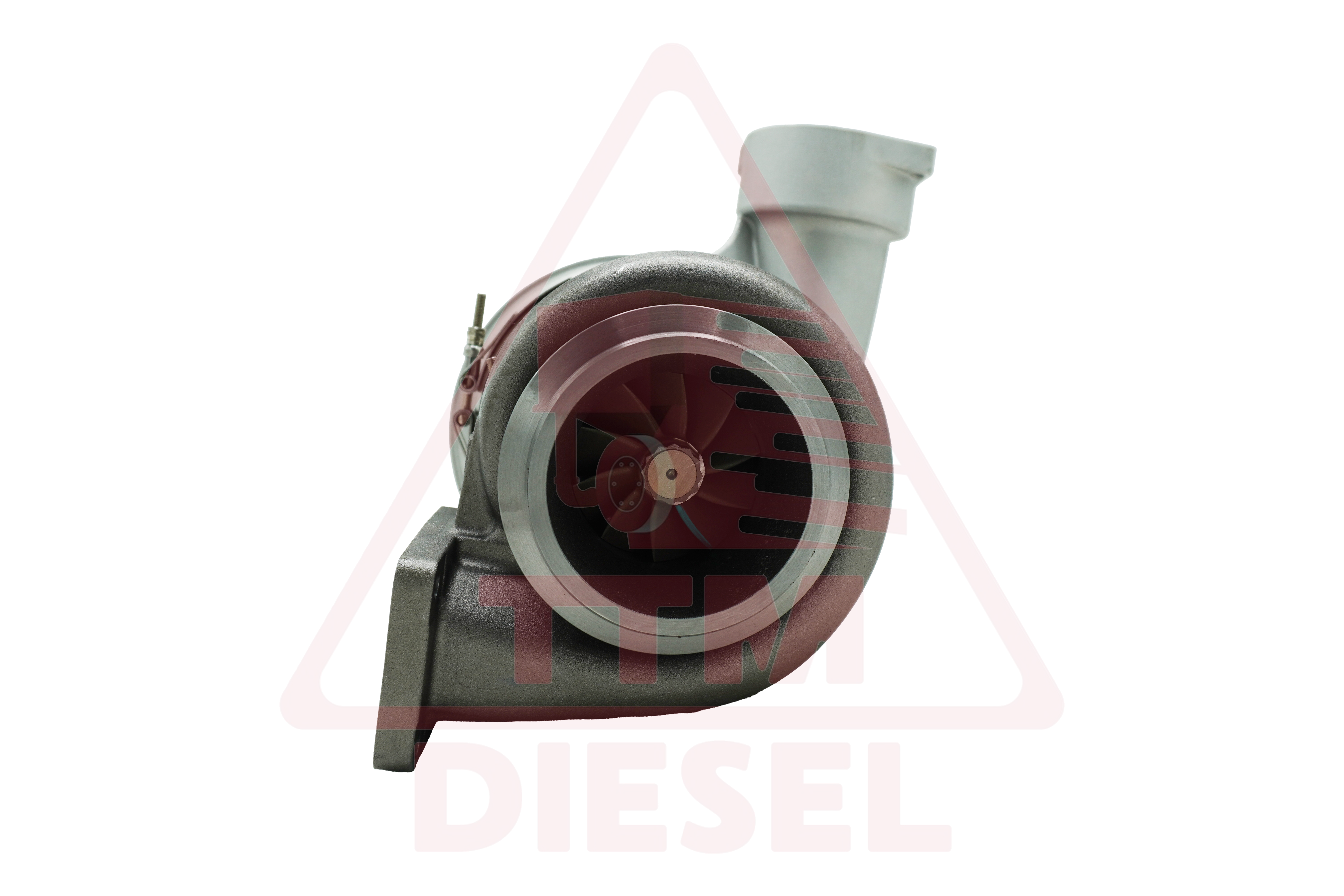

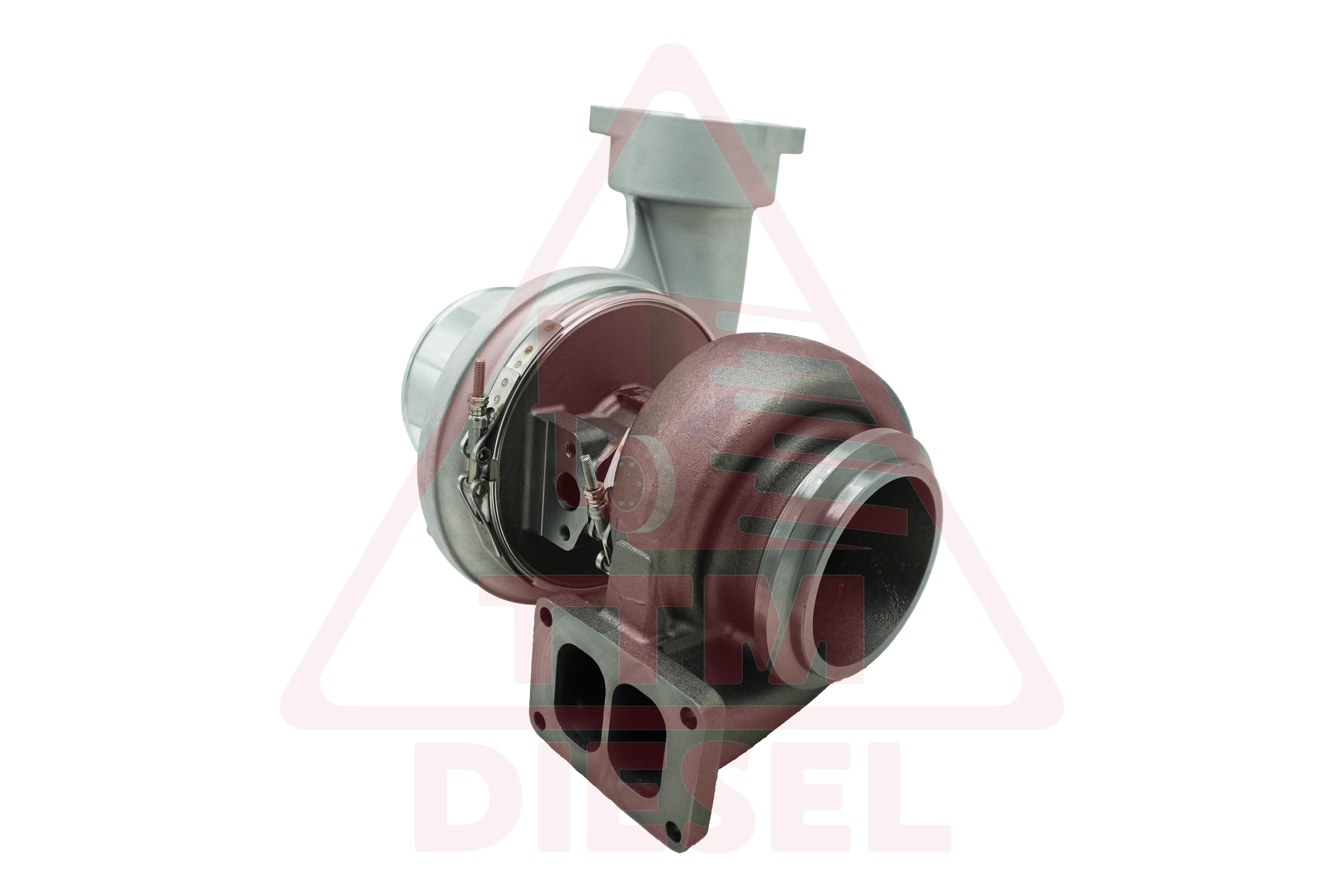

Premium New Stage 3 Turbocharger Assembly for CAT C15 / 3406E Engines – 14969880001
Rated for 750–850 Horsepower | Forged Milled Wheel | 360º Thrust Bearing
When building serious power, standard turbos aren't enough. This premium Stage 3 turbocharger assembly is specifically engineered for CAT C15 and 3406E engines pushing 750 to 850 horsepower — delivering maximum airflow, durability, and throttle response without the compromises of lower-grade options.
Featuring advanced non-wastegated technology, an 80mm forged milled compressor wheel, and a 360º thrust bearing upgrade, this turbocharger is designed for high-output, heavy-load, and extreme-duty performance.
-
Fits: CAT C15 and 3406E diesel engines
-
Part number: 14969880001
-
Horsepower rating: 750–850HP
-
Technology: Non-wastegated design for consistent high-load boost
-
Compressor Wheel Inducer: 80mm
-
Compressor Wheel Outer Diameter: 96mm
-
Forged Milled Compressor Wheel: Stronger, lighter, and faster spooling than cast wheels
-
360º Thrust Bearing: Enhanced bearing system for superior durability at high boost pressures
-
Turbine Housing: 1.58 A/R for optimal flow and throttle response
-
Ready to install: Direct bolt-on upgrade for high-performance builds
-
Ideal for: Performance rebuilds, heavy hauling, and competitive heavy-duty applications
If you're pushing your CAT engine to the limit, trust a turbocharger built to deliver — stronger, faster, and more reliable under maximum load.
Which Turbo is Right for You?
| Feature | Stage 1 Turbo | Stage 2 Turbo | Stage 2 Plus Turbo |
|---|---|---|---|
| Target Horsepower | 500–600 HP | 600–750 HP | 550–700 HP |
| Compressor Wheel | Standard Cast 7-Blade | Forged Milled 7-Blade | Forged Milled 11-Blade (High-Flow) |
| Spool Time | Good | Faster than Stage 1 | Fastest, with strong mid-top pull |
| Thrust Bearing | Standard 270° | Upgraded 360° Heavy-Duty | Premium 360° Heavy-Duty |
| Boost Holding (Pressure Limits) | Stock-to-Mild Tuning | Moderate-to-High Performance | High Performance / Heavy Towing |
| Turbine Housing Size | 1.32 A/R (typical) | 1.45–1.58 A/R options | 1.58 A/R optimized for flow |
| Best For | Daily Stock / Mild Tune | Heavy Hauling / Performance Builds | Heavy Towing / Tuned Fleet Trucks / Competition Use |
| Weight | |
|---|---|
| Dimensions |
