New vs. Remanufactured Cylinder Heads: What Changes
A remanufactured cylinder head usually reuses the original casting: it's cleaned, crack-checked, machined and rebuilt with some new parts, then sold on a core exchange. A new head is a casting that has never been in an engine, built with all-new valvetrain parts. The casting is the real difference. It decides the crack history, the machining margin left, and whether you owe a core.
What is the difference between a new and a remanufactured cylinder head?
The casting is the one difference you can't machine away. A reman head usually starts life as somebody's used head. It has been heat-cycled for however long that engine ran, and it may have been decked before the current rebuilder got it. A new casting has never been heat-cycled and still has its full machining margin.
Everything else follows from that: what gets inspected, what gets replaced, what can be salvaged, and what paperwork comes with the part. Here is how the four grades of head you'll be quoted line up, with the warranty term TTM puts on each grade of engine component.
| Type | Casting | What gets replaced | Core | TTM warranty term |
|---|---|---|---|---|
| New | New, never run | Nothing to replace: new casting with valves, springs, seals and guides installed | No core charge on TTM new heads | 12 months |
| Remanufactured | Usually the original, cleaned, inspected and machined (Cat UTN heads are an exception) | Depends on the program; some parts always, some only if out of spec | Usually sold on core exchange | 12 months |
| Reconditioned | Original | Typically only worn or damaged parts; no industry-wide process behind the word | Ask at time of sale | 3 months |
| Good used | Original, tested and inspected | Nothing required | Ask at time of sale | 30 days |
What does a remanufactured cylinder head actually include?
It depends on whose program built it, and reman does not guarantee an all-new valvetrain. The two OEM programs below publish enough detail to show the range.
Cummins ReCon. Cummins says every ReCon cylinder head is remanufactured to the latest Cummins specifications and pressure tested twice for internal casting defects in the water and fuel jackets, and every valve is vacuum tested for seating. The combustion surface is precision ground. All valve guides, injector sleeves, collets and spring retainers are replaced with new parts regardless of condition. Valves are not on that always-replaced list: Cummins says they are tipped, roller burnished and chromed if necessary, so they are reconditioned rather than automatically swapped. Injector sleeves go in metal to metal, with no sealant, by an automated process that sets injector protrusion.
Cat Reman. Caterpillar's Cat Reman brochure defines reman as returning components to their original performance specifications through salvage techniques, strict reuse guidelines and quality control. It says all critical wear and sealing components are replaced with new Cat parts and that Cat Reman heads are pressure tested for leaks before they leave the factory. Cat's reclaim and salvage overview says parts are cleaned first, because you can't judge a part until it's clean, then inspected. Cracks in specific areas go to salvage technicians for approved salvage processes, and heads go on to machining. Cat backs reman parts with a 12-month Caterpillar parts warranty.
Two OEMs, two sets of reuse rules. That's why the first thing to ask any reman seller for is the replaced-parts list.
Is every reman head a used casting?
No, and that's the clearest proof the paperwork matters more than the label. Caterpillar sells Cat Reman UTN cylinder heads that, in Cat's words, feature all new components, a new casting and the latest engineering updates, and still pass multiple quality checks during the remanufacturing process. So a head sold under a reman label can be a reused casting or a new one, depending on the program and the part number.
The core terms differ too. Cat's standard core criteria require that the component not be visibly cracked, broken or welded. For UTN heads, Cat gives full core credit even for cores with unsuccessful salvage attempts such as milling, grinding or welding, cracks from operational failure, non-operational failure or mishandling, and excessive rust or corrosion. When a quote says reman, ask two things before anything else: is the casting new or reused, and which core criteria apply to this part number?
Rebuilt, reconditioned, remanufactured: which one is on your quote?
Read the word on the quote carefully, because the tiers are not interchangeable. Caterpillar states that remanufacturing isn't rebuilding, refurbishing, reconditioning, repairing or overhauling. Cummins says its ReCon products are 100% factory remanufactured, not simply repaired or rebuilt.
In everyday shop use, a rebuilt or reconditioned head is a repair. The shop fixes what's worn or out of spec, sometimes repairs a crack, and sends it back. There's no industry-wide process behind the word, so the result depends on that shop's standards. A remanufactured head is supposed to come off a defined line with set inspection, machining and testing steps.
Don't assume reman means no crack repair, either. Cat's program applies approved salvage processes to cracks in specific areas, while its standard core criteria reject cores that are visibly welded. Both rules live in the same program, which is the point: the label tells you less than the paperwork does. TTM's warranty tiers for each grade are in the table above and spelled out near the end of this article.
Where can a remanufactured head cost you later?
Three places: what inspection can't see, how much machining margin is left, and the core. None of them show up in the price comparison on the day you decide.
Inspection finds today's cracks, not the casting's history
Magnetic particle inspection and pressure testing find cracks that exist the day the head is on the bench. In our view, they can't tell you how many heat cycles the casting has seen or how hard the engine was run before the head came off. That isn't a claim that reman heads fail; a documented program working to OEM reuse rules is built to catch what matters. On Cat heads, those rules are Cat's Reuse and Salvage Guidelines for cylinder head assemblies; get the current one for your head through a Cat dealer or Cat SIS. The point is what you know. A new casting's service history is zero. With a reused casting, you're trusting someone else's inspection and reuse rules.
Every deck cut uses up machining margin
Each resurfacing takes the head closer to the OEM minimum height, and a head below that minimum is scrap. You usually don't know how many times a reused casting was cut before the current rebuilder got it. Removing deck material also moves the valves and injector tips relative to the deck, so valve recession and injector protrusion need to be confirmed after any machining, whoever did it. The minimum head height, recession and protrusion limits are in the OEM service manual for your engine serial number; they aren't printed here.
On the 3406E and C15, a Cat C15 spacer plate sits between block and head, so head, plate and block surfaces all add up in the stack. Check the liner and deck dimensions for the whole stack against the Cat service manual before any head goes on. If nobody checks, a geometry problem can show up later looking like a failed head gasket.
Cores, freight and waiting
Most reman heads are sold on core exchange. TTM's core rules show what that means in practice: the core comes back within 30 days, drainable, uncracked, with mounting surfaces intact. Cat's standard criteria likewise reject cores that are visibly cracked, broken or welded. If your old head came off because it cracked, it may not qualify under rules like these, and the core charge you planned to get back stays on the invoice. Cat's UTN program is the exception that credits cracked cores, so read the core terms for the exact part you're buying. Then add return freight on a heavy casting and the days the core spends in transit and inspection before the credit posts. TTM's new heads carry no core charge, so none of that applies.
What should you ask before buying a reman head?
Ask for answers in writing. A seller running a real process will have them; a seller who can't answer is telling you something too.
- Is the casting new or reused? A reman label doesn't settle it.
- Which parts were replaced? Get the list. Valves, springs, guides, seats, seals and injector sleeves: new, reconditioned or reused?
- Was it pressure tested and vacuum tested? Water and fuel jackets for casting leaks, valves for sealing.
- What is the head height after machining? Compared with the OEM minimum for that casting.
- Was any crack repaired, welded or salvaged? Where on the casting, and under whose salvage rules?
- Are the injector sleeves new? And was injector protrusion set and checked?
- What is the warranty, and what voids it? Length, exclusions, and how a claim is handled.
- What are the core terms? Return window, condition required, and who pays freight.
When does a new head make more sense than a reman?
Buy new when the casting itself is the problem or the unknowns cost more than the price gap. A documented reman is a fair buy when the paperwork is solid and your horizon is short.
Buy new when:
- The old head cracked rather than just wore, so your core may not qualify anyway
- You're keeping the truck through another overhaul cycle
- You want one invoice, with no core charge, no return freight and no core credit to chase
- You want to choose the valve material
A documented reman is defensible when:
- It comes from a published program with a written 12-month warranty
- You're selling or trading the truck soon
- Your old head is clean, uncracked and will qualify as a core
Treat a rebuilt head with a repaired crack as a stopgap unless the shop can show you what was repaired, where on the casting, and under which OEM guideline.
On valve material: TTM's new heads come in stages. TTM's Stage 1 uses standard OEM-style valves, Stage 2 upgrades to Inconel exhaust valves, Stage 3 uses Inconel intake and exhaust valves, and Stage 4 adds a fire ring where offered, such as the Cat C15 / 3406E / C16 universal head. A reman exchange ships whatever valve spec its program uses. Check each product page for the stages offered.
Why did the old head fail? Check this before installing any head
Find the root cause first, new head or reman. If whatever cooked the first head is still there, the replacement can fail the same way, and TTM's warranty does not cover damage from inadequate cooling, overheating, low oil or coolant, over-fueling or fuel contamination. This is the sequence we'd follow before a replacement goes on:
- Read the old head. Where it cracked, where the gasket let go and what the injector bores look like point you toward heat, coolant or a sealing problem.
- Prove the cooling system. Pressure test it, and confirm the radiator, thermostat, fan and water pump are doing their jobs.
- On EGR engines, rule out the EGR cooler. A leaking cooler can put coolant into the intake and look like a head or gasket failure.
- Measure the block. After a gasket or head failure, check deck flatness and, on liner engines, liner protrusion and counterbores against the OEM service manual.
- Check fueling. Look for anything that was adding heat, since over-fueling and contaminated fuel kill heads and void coverage.
Head bolts, gaskets and the labor you only want to pay once
The removal and installation labor is the same whichever head you buy, and no head warranty pays for it. TTM's warranty excludes labor, diagnostics, removal and installation, towing, freight, downtime, lost revenue, rental equipment and driver costs. So the cheapest head is the one that only goes on once. Get your shop's labor quote for your engine and weigh the price gap between heads against paying that labor a second time.
Plan on new head bolts and a new gasket set with either choice. Head bolts on torque-to-yield designs are single use, which is why TTM sells head bolt kits separately; confirm the bolt type for your engine in the OEM service manual, along with the torque values and tightening sequence, which aren't printed here. TTM carries a Cat C15 head bolt kit for 3406E, C16 and C18 and a Cummins ISX15 / X15 head bolt kit, along with kits for other engine families.
TTM warranty and core terms, in plain words
TTM new heads carry a 12-month warranty against defects in material and workmanship unless the product page says otherwise, and no core charge. Remanufactured components and long blocks also carry 12 months, reconditioned components 3 months, and good used, tested and inspected components 30 days. The full terms are on the TTM warranty page.
Coverage is voided by damage from improper installation, inadequate cooling, fuel contamination, over-fueling, overheating, low oil or coolant, skipped break-in or non-OEM fluids. If something goes wrong, notify TTM within 72 hours of detecting the issue, and don't tear the engine down until TTM authorizes it in writing. Cores, where they apply, come back within 30 days, drainable, uncracked, with mounting surfaces intact.
Which new TTM head fits your engine?
Start with the engine serial number; it's the fastest way to confirm which head your engine takes before a torn-down truck is waiting on the wrong casting. A few of the new loaded heads TTM carries:

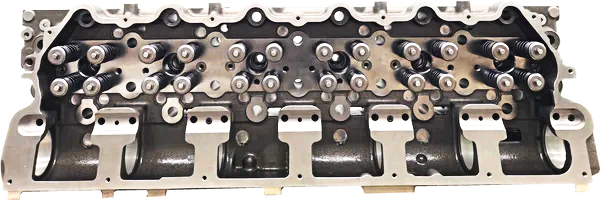

- Cat C15 cylinder head 2239250, 3406E / C15 ACERT universal, new
- Cummins ISX15 cylinder head 4374091, X15 SOHC, new
- Detroit Series 60 DDEC V 14L Stage 2 cylinder head 23538858, new
TTM also carries new loaded heads for the Cummins N14 and ISX dual cam, Cat C13 and C12, Detroit Series 60 12.7L and DDEC VI 14L, Volvo D13 and Mack MP8. Search ttmdiesel.com by engine or part number, or call with the serial number.
If you'd rather order the head and supporting parts together on a Cat, see the Caterpillar 3406E / C15 / C15 ACERT cylinder head replacement kit and check the product page for exactly what's included.
TTM runs an in-house cylinder head shop and diesel machine shop in Houston. If you're weighing a new head against your own, call (713) 675-2435 or email sales@ttmdiesel.com with the engine serial number and what you found when the head came off.
Frequently asked questions
Is a remanufactured cylinder head as good as new?
A head from a documented OEM reman program is machined and tested to that OEM's spec, and Caterpillar describes reman as returning components to their original performance specifications. What reman usually can't change is the casting, which has already been heat-cycled and may have been decked before. If the old head cracked or you're keeping the truck long term, a new casting removes that unknown. For a shorter horizon, a documented reman with a written warranty is a reasonable buy.
What is the difference between a rebuilt and a remanufactured cylinder head?
A rebuilt head is a repair: the shop replaces what's worn or out of spec, so quality depends on that shop. A remanufactured head goes through a defined program of inspection, machining and testing. Caterpillar says remanufacturing isn't rebuilding or reconditioning, and Cummins says ReCon products are factory remanufactured, not simply repaired or rebuilt. Reman programs still differ on which parts are always replaced, so ask for the replaced-parts list before you buy.
Do I have to return a core on a remanufactured head?
Usually, yes. Most reman heads are sold on core exchange, and the core charge comes back only if your old head qualifies. At TTM, cores must come back within 30 days, drainable, uncracked, with mounting surfaces intact, and Cat's standard criteria also reject visibly cracked or welded cores. Cat's UTN program is an exception that credits cracked cores. TTM's new heads carry no core charge, so there's nothing to send back.
Can I reuse my head bolts?
Not on a torque-to-yield design, and many heavy-duty diesel heads use one. Those bolts are single use, so plan on a new set every time the head comes off, whether the replacement head is new or remanufactured. TTM sells head bolt kits for the Cat 3406E, C15, C16 and C18, the Cummins ISX15 and X15, and other engine families. Confirm the bolt type, torque values and tightening sequence in the OEM service manual for your engine.
Does resurfacing a cylinder head cause other problems?
It can if nobody rechecks the geometry. Cutting the deck uses up height above the OEM minimum and moves the valves and injector tips relative to the deck, so valve recession and injector protrusion need to be confirmed afterward. On a 3406E or C15, which use a spacer plate, the head, plate and block surfaces all affect the stack. Check every dimension against the OEM service manual before the head goes on.
Can a C15 head with cracks between the valves be reused?
Don't decide it by opinion or by what someone got away with once. Cat publishes Reuse and Salvage Guidelines that cover cylinder head assemblies, and those are the rules that decide whether a used head can go back into service. Get the current guideline for your head through a Cat dealer or Cat SIS and check the head against it. If it doesn't meet the guideline, replace the head.
Are remanufactured cylinder heads welded?
Sometimes. Cat's reman program sends cracks in specific areas to approved salvage processes, while its standard core criteria reject cores that are visibly welded. Rebuilt heads from independent shops may carry weld repairs with no published rule behind them. Whether a repair is acceptable depends on where the crack is and on the OEM's salvage rules. Ask the seller in writing what salvage or weld repair was done to the casting, and where.
